Mobile Scaner

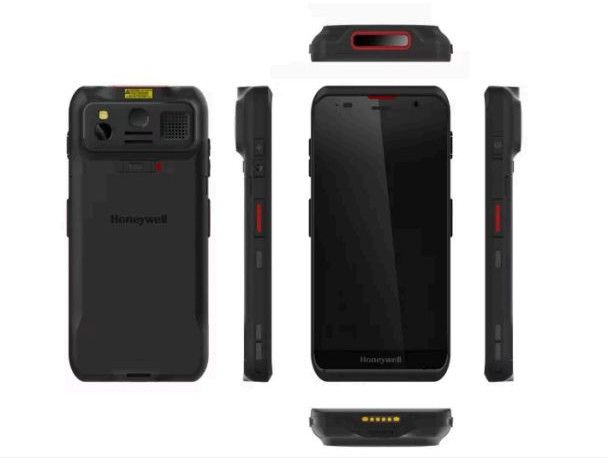

Honeywell ScanPal™ EDA52 is an enterprise-class mobile computer that provides reliable and secure connectivity between frontline workers and backend systems. It's designed for retail use, logistics, manufacture, healthcare and public service.

ScanPalEDA52 is Honeywell’s next generation ScanPal series mobile computer equipped with the latest Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi5, Bluetooth5.1 and 4GLTE communication. A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day. The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication. The EDA52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables fast reading even of damaged or incomplete barcodes. Outfitted with a rugged housing and IP67 rated sealing, the EDA52 can operate under rough usage and demanding environmental conditions. A 4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0. The EDA52 (WWAN version) supports one nano SIM and one e-Sim simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards. The EDA52 is built on Android11 and can be upgraded to Android13* minimizing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs



FEATURES



Application

Retail, transportation & logistics, manufacturing, healthcare, and public service



Camera

Front: 5-megapixed color camera

Rear: 13 - megapixel color camera



DIMENSIONS

Overall Dimensions

159mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in)



SCANNING SPECIFICATIONS

Decode Capability

Honeywell S0703 Slim Imager (1D/2D barcode symbologies)



NETWORK

WLAN Specifications

Additional WLAN Features: 802.11 d/e/h/i/k/ r/u/w

Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)

WLAN (Wi-Fi Alliance certified): 802.11 a/b/g/n/ac

WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP



Bluetooth Specifications

Bluetooth Class 5.1



WWAN Specifications

FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9, 12,13,17,19,20,25,26,28,30,66

GSM/EDGE: Bands 2, 3, 5, 8

TDD-LTE: Bands 38, 39, 40, 41

UMTS/HSPA+: Bands 1, 2, 4, 5, 6,8, 9, 19



GPS Specifications

GPS (WWAN only) Supported Protocols: Simultaneous receiver support for GPS, GLONASS, and BeiDou



SOFTWARE & FIRMWARE

Operating System

Android 11, and upgradeable to Android 13 (Android 13 is pending for the confirmation from Qualcomm & Google)



MEMORY & DATA

Memory

Storage Expansion: MicroSD (up to 128 GB)



HARDWARE

Display Size

Gorilla Glass 5, 5.5-inch



Processor

Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz



Display Resolution

1440 x 720 High Definition



Scan Engine Model

Honeywell S0703 Slim Imager (1D/2D barcode symbologies)



ELECTRICAL

Battery capacity

3.8 V, 4,500 mAh, removable

Battery Type

Li-Ion

Battery Types

Honeywell



ENVIRONMENTAL

Operating temperature

-20°C to +50°C (-4°F to +122°F)



Operating Humidity

5% to 90% (non-condensing)



STANDARDS & APPROVALS

Drop Specifications

Multiple 1.3m (4.3ft) per MIL-STD 810G drops to concrete at room temperature

Multiple 1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room temperature



Tumble Specifications

550 times at 0.5 m (1.64 ft)



OTHERS

Durability

Electrostatic Discharge (ESD): ±8 kV direct; ±15 kV air

Environmental Sealing: IP67



Camera Position

Front and Rear





The EA520, the 5” cutting-edge rugged smartphone delivers powerful barcode reading performance, convenient connectivity, durable but lightweight design that just fits in the palm of your hand. This enhances the service level for a variety of vertical applications within the retail, hospitality and field service sectors.



Application & Uses:- Support MDM Software Solutions and utilities such as Mobo Links, powerful 1D/2D scanning capability, it also supports DPM codes and ensures read reliability for mobile phone screens and paper in any orientation, it is integrated HF/NFC RFID reader/writer, GPS, and a high-resolution 13MP camera in a compact device. The EA520 gives your workforce the technology it needs to take your business to the next level.



Features:- Support 1D / 2D barcode on mobile screens, even DPM barcodes, Lightweight design that just fits in the palm of your hand, All-In-One functionality: HF/NFC and 13MP camera, Long-lasting removable 4100mAh battery, Support Bluetooth® 5 / dual-band WLAN, fast roaming / 4G LTE Powered by a removable 4100mAh battery.



Frequency:- Operating temperature -20°C to 60°C, Storage temperature - 40°C to 70°C (without battery), Side SCAN button x 2 (Left / Right), User-defined function button (programmable key), volume up/down buttons, on/off button

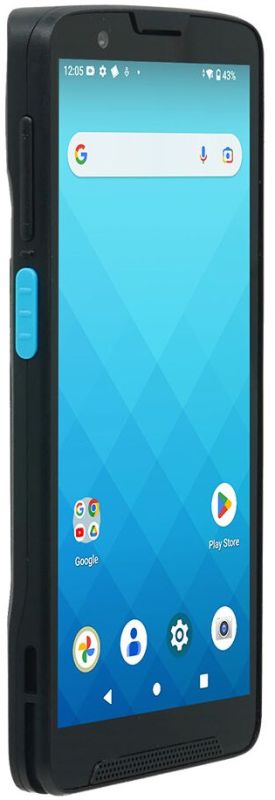

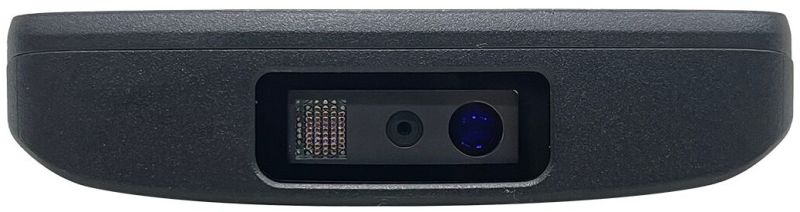

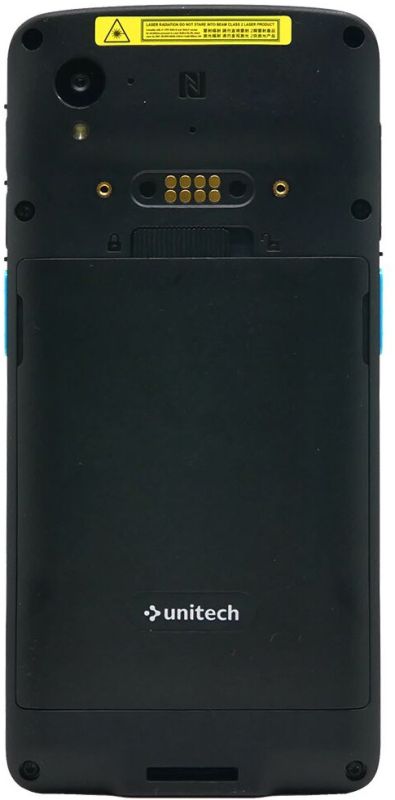

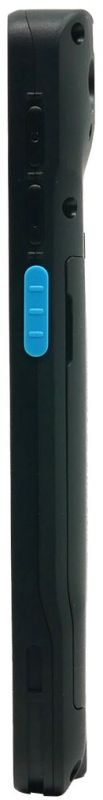

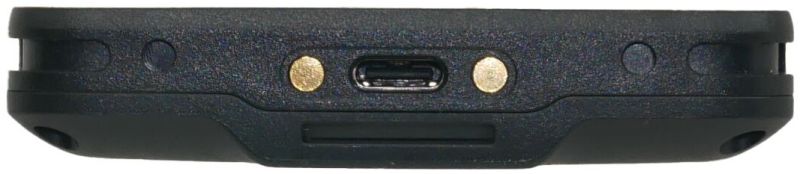

The PA720E Plus is also known as the unitech EA630 Plus continues progressing with an advanced Android11 system to optimize high-performance 2D barcode experience, accelerating and improving labor productivity tremendously than ever. The full touch 6” Gorilla screen offers clear visibility up to 80% screen-to-body ratio. A bigger 4G/64G mobile storage mitigates the possibility of data missed. The Ultra Slim Rugged Smartphone drives up stock management more efficiently in the retail, hospitality, and health service industries.



Application & Uses: - Bluetooth 5 supported, OS Android 11, Support unitech software solutions, SDKs, MoboLink, and MDM solutions.



Features:- 6 inch rugged smartphone with a screen-to-body ratio of over 80%, All-In-One functionality : 2D Imager, NFC, 5MP front camera, and 16 MP rear camera, Long-lasting removable 4000mAh smart battery, Dual bands WLAN with Bluetooth 5.
